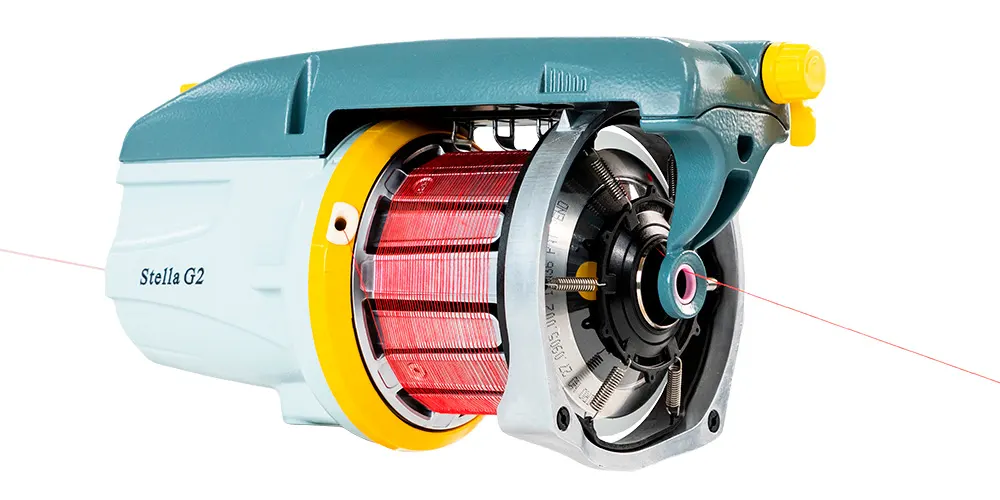

IRO Stella G2

IRO Stella G2 provides perfect speed regulation with low power consumption thanks to our new mechanical sensor system used in conjunction with permanent magnet motor technology. Quick release and easily accessible yarn tension adjustment for easy handling are included as standard.

Technical data

Maximum speed:	1500 m/min
Yarn count range:	120 – 1,5 Nm and 6 – 4000 dTex
Yarn separation:	2.7 mm
Sensor systems:	Mechanical
Dimensions:	190 mm height, 305 mm length, 150 mm width
Weight:	4.9 kg

Features

S/Z Switch
Used to set the directions of rotation.

Permanent magnet motor
A powerful maintenance-free “permanent magnet motor” ensures low energy consumption, low operating temperature and high torque at all speeds.

Spool body
A uniquely designed, high quality, surface treated spool body gently handles a comprehensive range of yarns, providing the optimal yarn “take-off” tension, and ensuring the minimum amount of dust.

Soft spool body seal
Prevents dust and lint penetration of the ball bearings

Separation setting
Stepless yarn separation adjustment - without the need for any tools.

Quick release
Releases the brushring holder in one single turn for easy handling if a yarn break occurs., or for quick and easy braking element replacement.

Easy balloon adjustment
Adjustable knob for easy and precise brushring adjustment - even when the feeder is running.

Brush ring/ Flex holder
Robust design for the perfect operation of S-flex, flex brakes, brushrings and lamella tensioner.

Mechanical Sensor System
The mechanical sensor system, working in unison with the intelligent speed control, ensures optimal tension control, and includes an integrated yarn break sensor.
